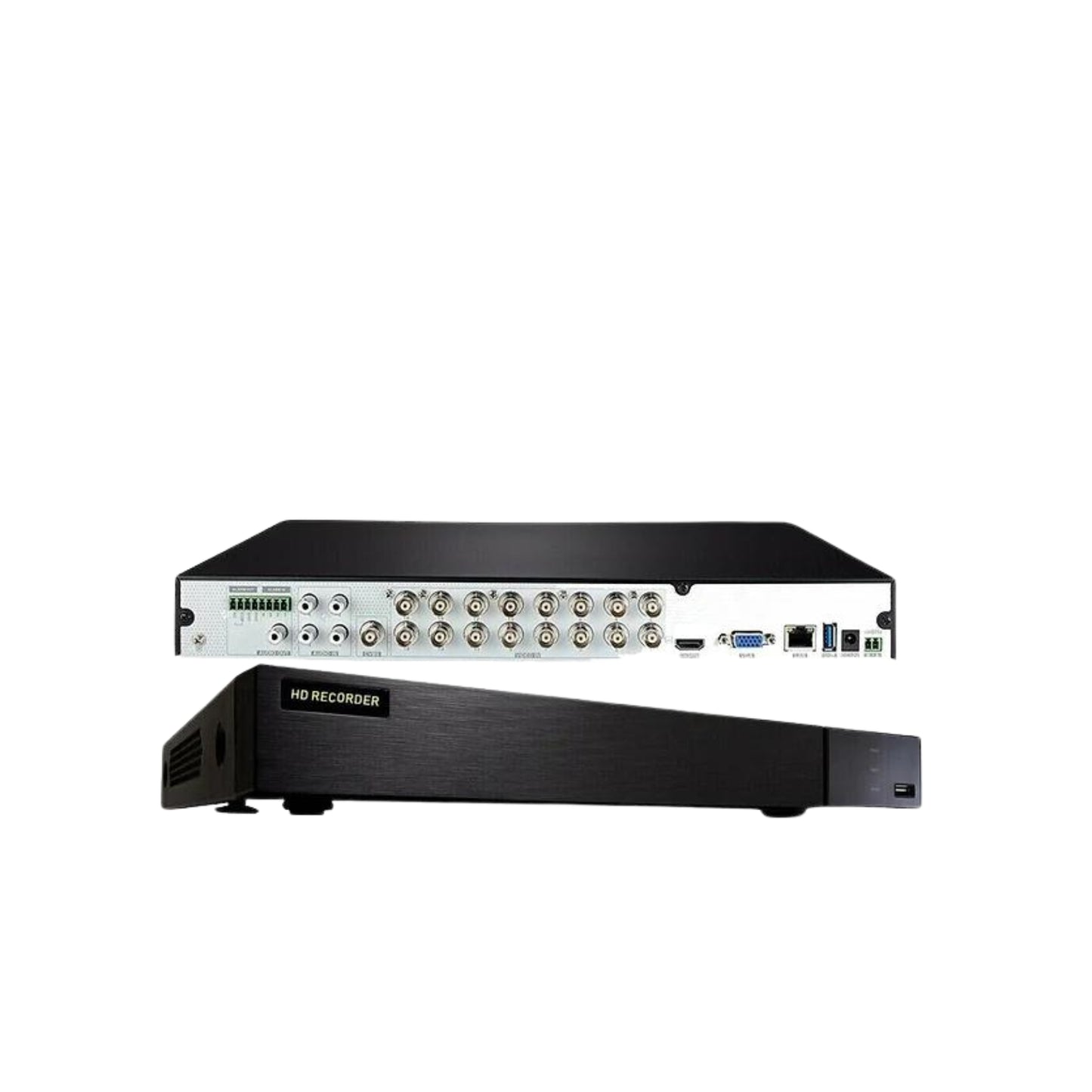

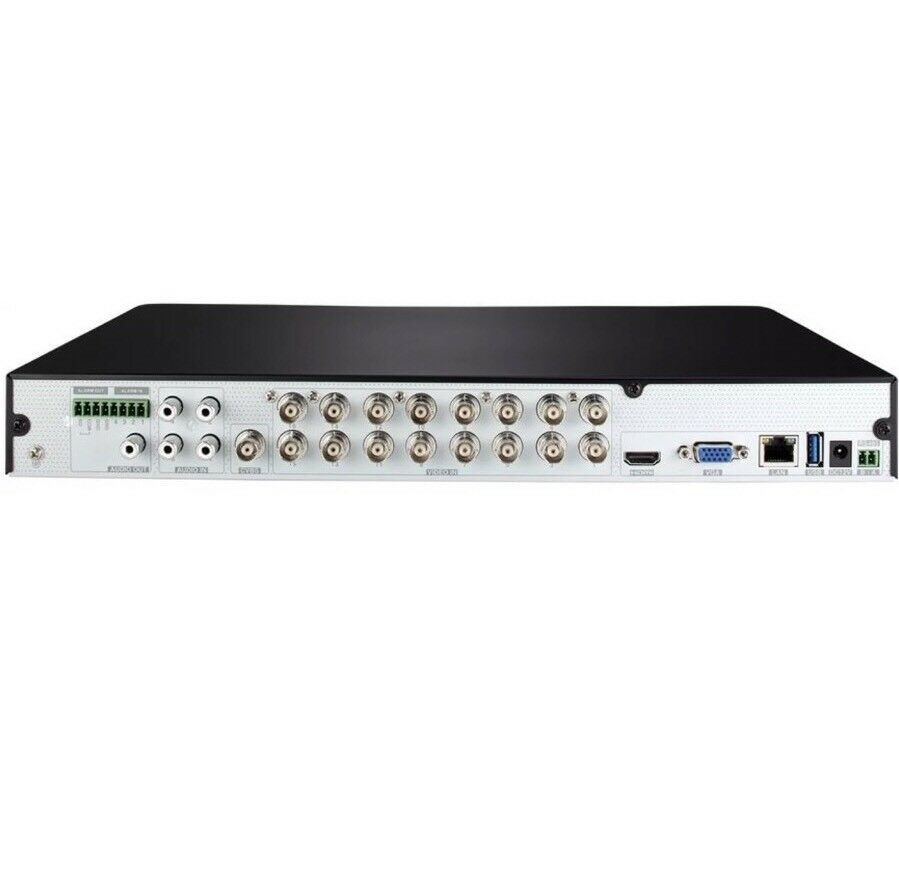

ED8216H5-FN Tvt 16ch CCTV Recorder w/ HDD ED8216H5-F || Titanium DVR 8MP Lite
This listing includes:
- (1) HARD DRIVE OPTION: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB
- (1) DIGITAL VIDEO RECORDER: ED8216H5-FN
ED8216H5-FN view data sheet
ED8216H5-F || Titanium, DVR, 8MP Lite, 16CH, 2X SATA PORTS
? Max Recording Resolution: 8MP Lite
? Channels: 16CH
? LAN Ports: 1
? SATA: 2X SATA PORTS
? Video Outputs: HDMI / VGA
? NDAA Compliant: No
? Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out
Product Description
Features
16 CH TVI / AHD video input, support 8MP / 5MP/ 4MP / 3MP / 1080P / 720P / WD1
16 CH CVI video input, support 8MP/5MP/4MP/3MP/1080P/ 720P/ WD1
16 CH DVRs support 8 CH IPC 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timer / motion
Playback: 16CH simultaneous playback
Search: time slice, time, event ( manual, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup, and remote access
DHCP, DDNS, PP PoE network protocol, IE browse and CMS supported
Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
Multi-user online simultaneously
Authorization management, log review and device status review
HDMI 4K output, true high-resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QR Code scanning by mobile phone and PAD

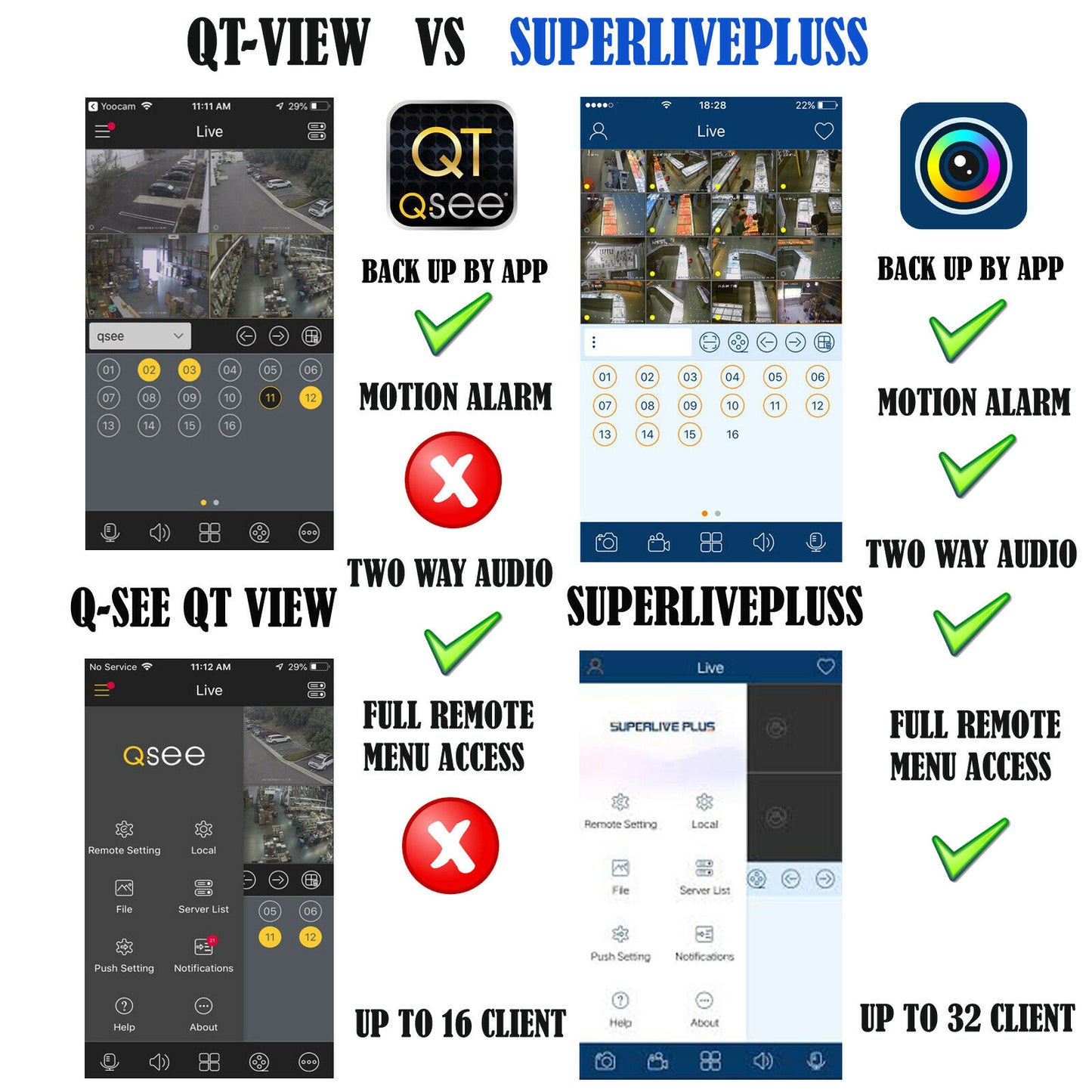

Powerful smartphone & Pad surveillance with iOS and Android OS
New than FW1.3.5?
Titanium DVR New Firmware Downloads
New FW1.3.5: Titanium DVR New Firmware Downloads
This Digital Video Recorder works with: Titanium HD Cameras
Weight 6.062705 lbs
Dimensions 6 ? 6 ? 6 in
