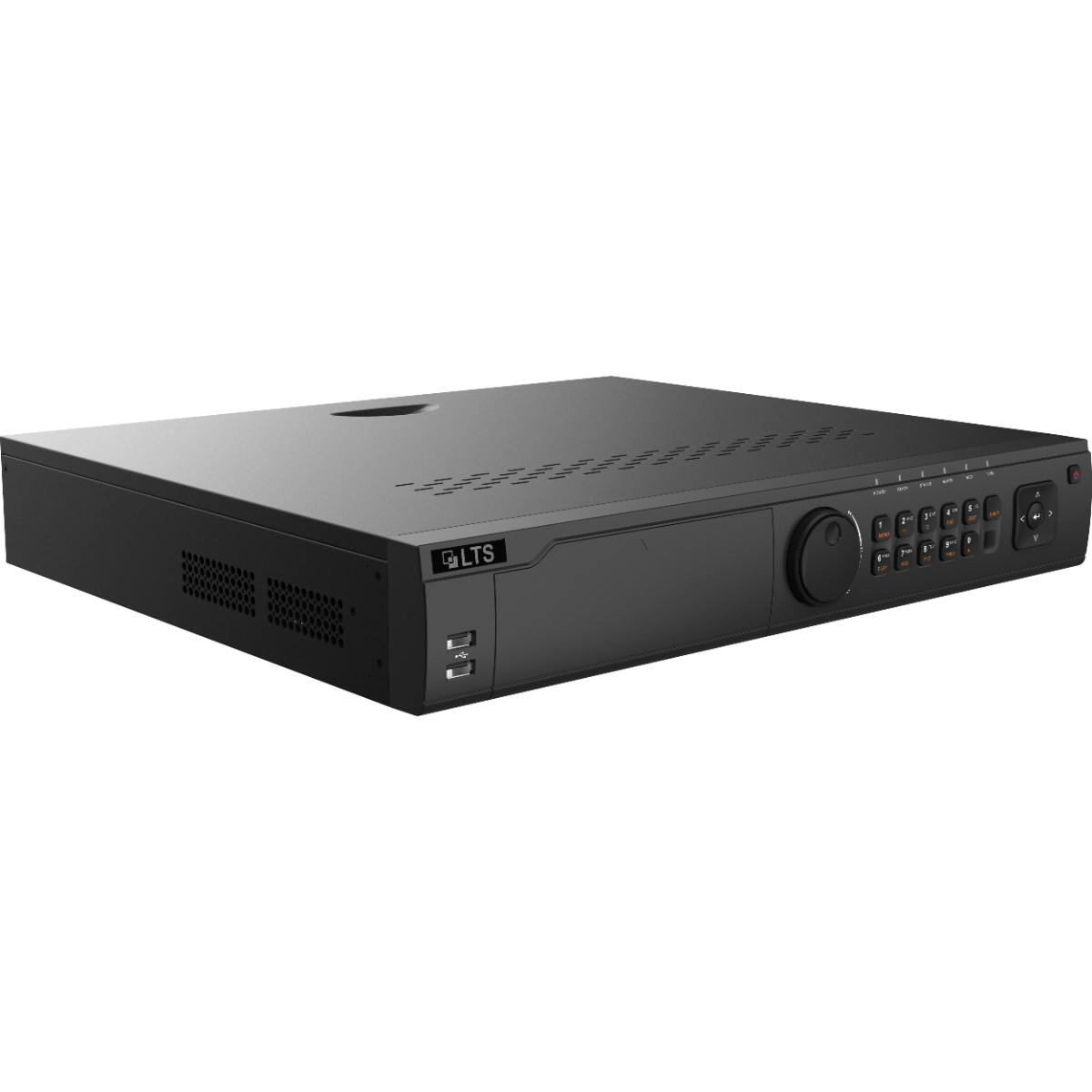

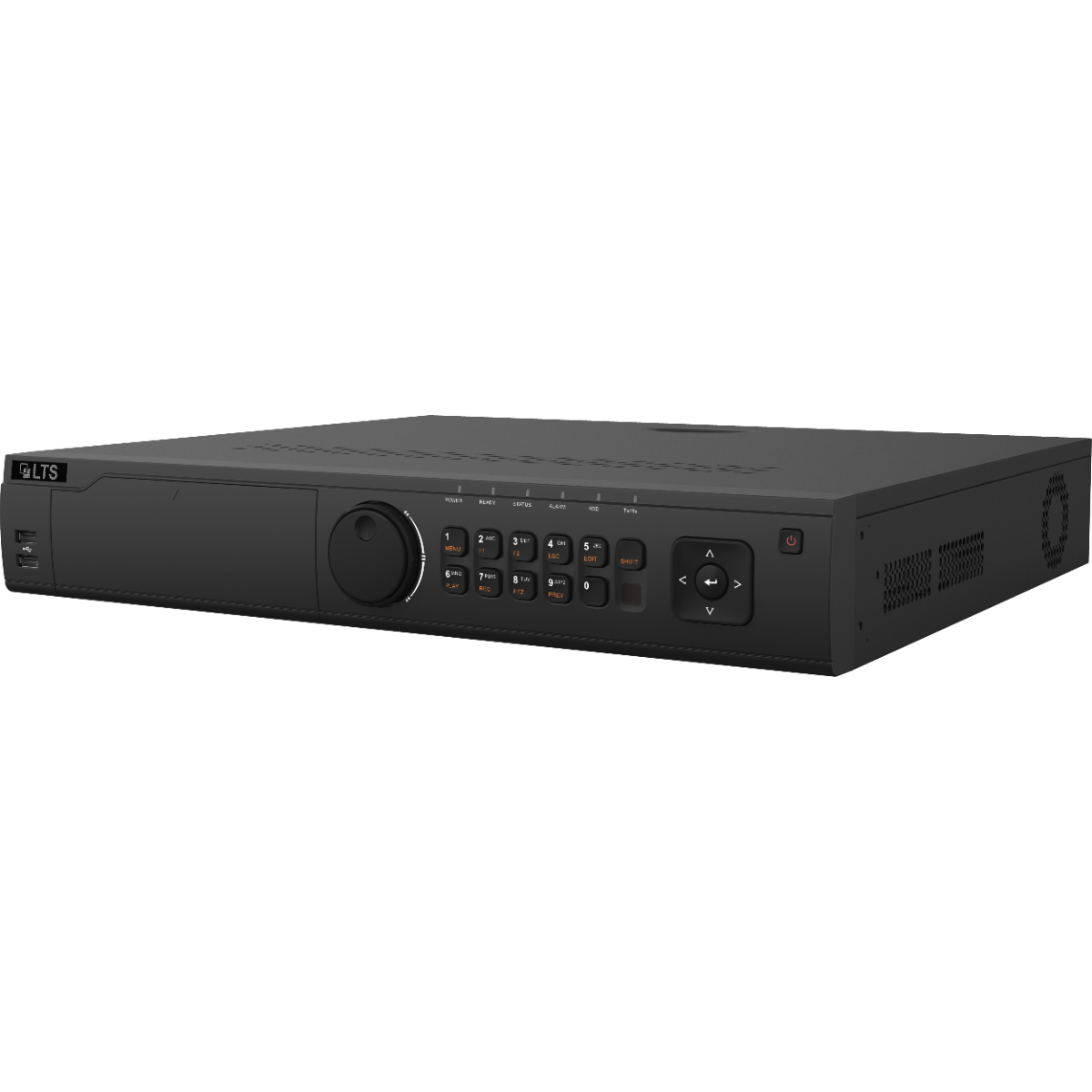

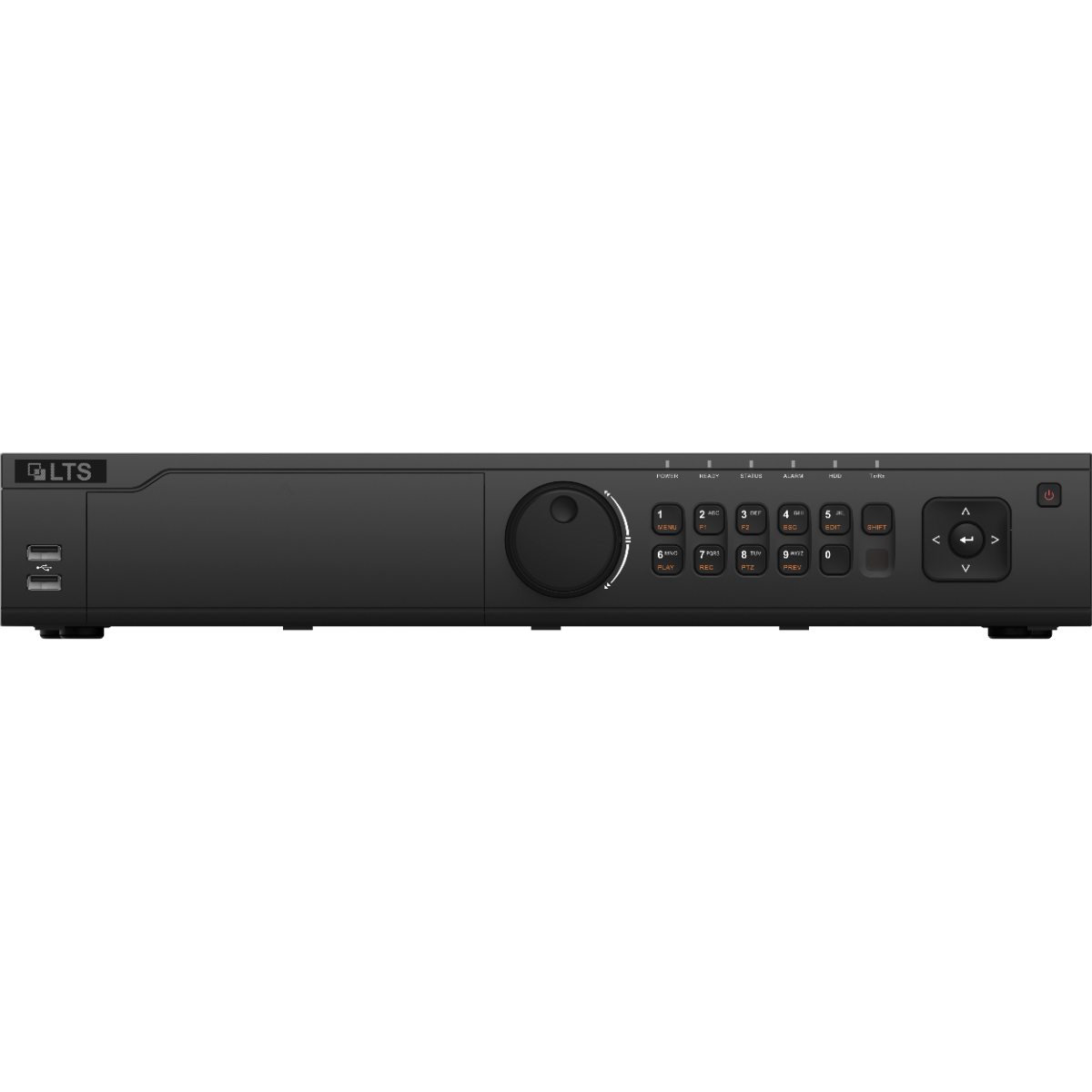

LTS 32-ch 5 MP 1.5U H.265 MD 2.0 DVR – LTD8032M-ST
- Video Input: 32 channels (TVI / AHD / CVI / CVBS / IP), up to 12 MP
- Analog Record Rate: 8 MP @ 8 fps / 3K @ 12 fps / 5 MP @ 12 fps / 4 MP @ 15 fps / 3 MP @ 18 fps
- IPC Input: 32 channels (up to 64)
- Total Bandwidth: Incoming: 320 Mbps Outgoing: 256 Mbps
- Video Output: HDMI 1 / VGA up to 1920 × 1080 HDMI 2 up to 4K (3840 × 2160), VGA up to 1920 x 1080
$1,786.99
● In stock · ships from the US
★ Earn 1,786 points ($17.86 back)U-Ecom RewardsYou get 1 point for every $1 when this order is completed. 100 points = $1 off a future order — redeem them for a coupon in your account. New accounts start with 100 points. How it works | Quantity | Unit price |
|---|---|
| 1 | $1,786.99 |
| 2 | $1,769.12 −1% |
| 3–4 | $1,751.25 −2% |
| 5–19 | Trade account price |
| 20+ | Request a quote |
- ShippingFree in the US over $199
- WarrantyManufacturer warranty
- Returns30 days, no restocking fee
Overview
The LTS LTD8032M-ST 32-ch 5 MP 1.5U H.265 MD 2.0 DVR is part of the Platinum Plus line for professional security installs.
- Channels
- 32 channels
- Smart features
- Human / Vehicle Detection
- Storage
- 4 × SATA up to 12 TB each
- Video output
- HDMI 1 / VGA up to 1920 × 1080 HDMI 2 up…
- Audio
- IN: 4 lines OUT: 1 line
- Free US shipping over $199Flat $12.99 below that · details
- 30-day returnsNo restocking fee · policy
- Trade pricingInstallers & integrators · apply
- Talk to a techCompatibility help · (+1) 720 744 3135
Specifications
| Video Input | 32 channels (TVI / AHD / CVI / CVBS / IP), up to 12 MP |
|---|---|
| Analog Record Rate | 8 MP @ 8 fps / 3K @ 12 fps / 5 MP @ 12 fps / 4 MP @ 15 fps / 3 MP @ 18 fps |
| IPC Input | 32 channels (up to 64) |
| Total Bandwidth | Incoming: 320 Mbps Outgoing: 256 Mbps |
| Video Output | HDMI 1 / VGA up to 1920 × 1080 HDMI 2 up to 4K (3840 × 2160), VGA up to 1920 x 1080 |
| Decoding Format | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Deep Learning Support | Human / Vehicle Detection |
| Playback Channel | 16 Ch |
| Audio In / Out | IN: 4 lines OUT: 1 line |
| Alarm Channels (In / Out) | 16 / 4 |
| Network Interface | 2, RJ45 10 / 100 / 1000 Mbps |
| Storage | 4 × SATA up to 12 TB each |
| PTZ Control | RS-232, RS-485, Keyboard |
| USB Ports | 1 × USB 2.0, 2 × USB 3.0 |
| Dimensions (W × D × H) | 17.3" × 15.7" × 2.8" |
Downloads
Q&A
Can I buy this without a trade account?
Yes. Anyone can check out at the price shown. Installers and integrators can apply for a trade account for volume pricing and project quotes.
Will it work with my existing system?
Check the specifications above for supported protocols and power. If you are unsure, call (+1) 720 744 3135 with your current recorder or camera model and we will confirm before you order.
Do you offer pricing for larger projects?
Yes — send us a bill of materials through the quote form and we will reply with a single quote.
