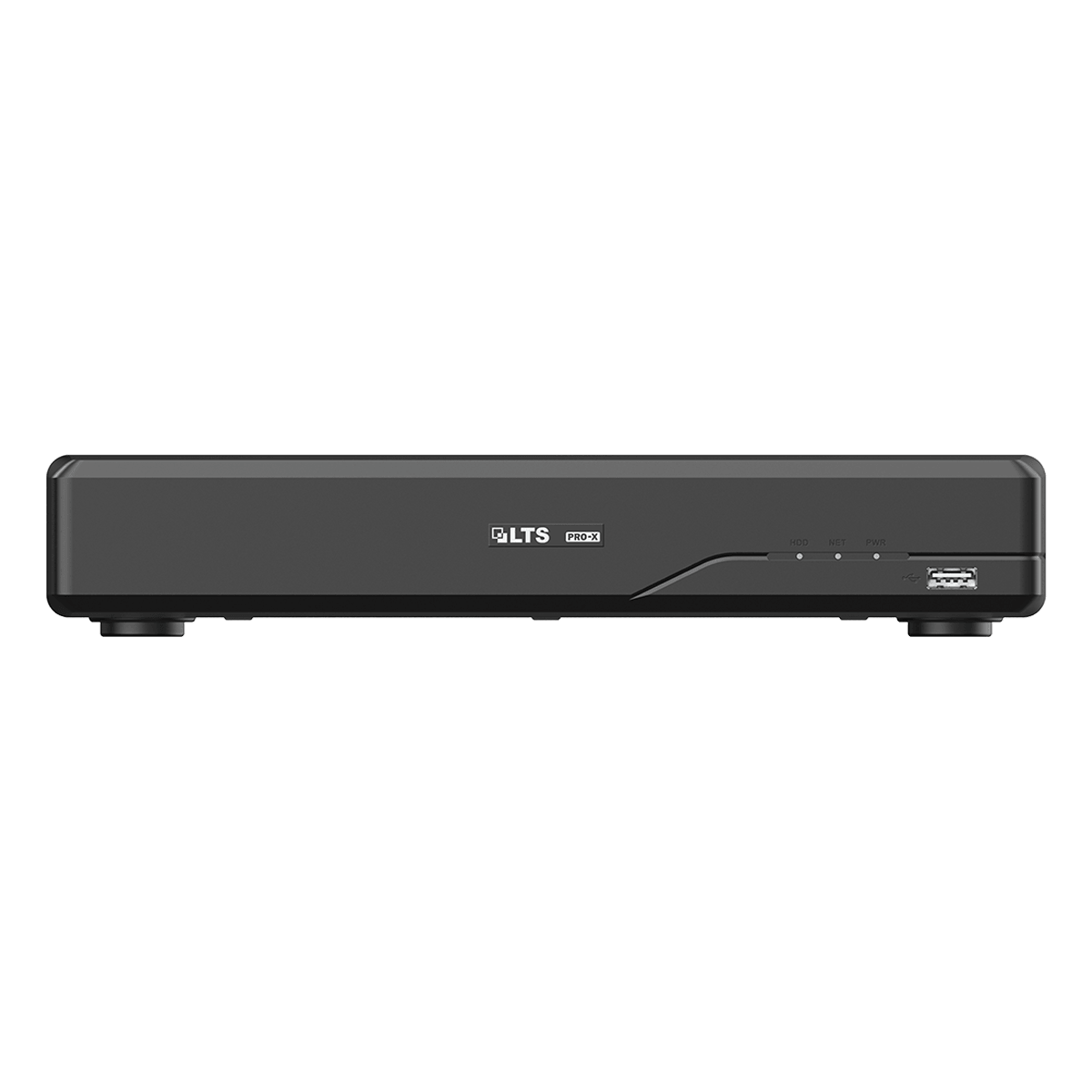

LTS Pro-X 16-PoE-Channel 4K NVR – LXN8216D-P16
- Video Input: 16CH IP @ 256Mbps (180Mbps with backend AI enabled)
- Video Output: HDMI up to 4K (3840 x 2160), VGA up to 1080P
- Recording: Up to 16MP
- Decoding: H.265+ / H.265 / H.264 2CH @ 16MP / 4CH @ 4K / 8CH @ 4MP
- Playback: Up to 16MP
$611.99
● In stock · ships from the US
★ Earn 611 points ($6.11 back)U-Ecom RewardsYou get 1 point for every $1 when this order is completed. 100 points = $1 off a future order — redeem them for a coupon in your account. New accounts start with 100 points. How it works | Quantity | Unit price |
|---|---|
| 1 | $611.99 |
| 2 | $605.87 −1% |
| 3–4 | $599.75 −2% |
| 5–19 | Trade account price |
| 20+ | Request a quote |
- ShippingShips from the US · rate shown at checkout
- WarrantyManufacturer warranty
- ReturnsContact us before sending back
Overview
The LTS LXN8216D-P16 pro-X 16-PoE-Channel 4K NVR is part of the Pro-X line for professional security installs.
Key features
- Human / Vehicle Detection
- Smart Perimeter
Buying from U-Ecom
Retail checkout is open to everyone. Installers and integrators can apply for a trade account for tiered pricing and project quotes. Questions about compatibility? Call (+1) 720 744 3135.
Specifications
| Video Input | 16CH IP @ 256Mbps (180Mbps with backend AI enabled) |
|---|---|
| Video Output | HDMI up to 4K (3840 x 2160), VGA up to 1080P |
| Recording | Up to 16MP |
| Decoding | H.265+ / H.265 / H.264 2CH @ 16MP / 4CH @ 4K / 8CH @ 4MP |
| Playback | Up to 16MP |
| Recorder AI | Human / Vehicle Detection, Smart Perimeter |
| Feature | Detection, Human Face Recognition |
| Audio I/O | IN: 1 line OUT: 1 line RCA |
| Alarm I/O | 4CH/2CH |
| Built-in PoE | 16CH |
| Network | 10/100/1000M, 1 RJ45 |
| Storage | 2 SATA up to 16TB each |
| Backup | 2 USB 2.0 |
| Dimensions | 14.65”(W) x 12.82”(D) x 1.72”(H) |
| Rack Mount | Optional rack-mount ears (LXRM1U), sold separately |
Downloads
Q&A
Can I buy this without a trade account?
Yes. Anyone can check out at the price shown. Installers and integrators can apply for a trade account for volume pricing and project quotes.
Will it work with my existing system?
Check the specifications above for supported protocols and power. If you are unsure, call (+1) 720 744 3135 with your current recorder or camera model and we will confirm before you order.
Do you offer pricing for larger projects?
Yes — send us a bill of materials through the quote form and we will reply with a single quote.
